In a previous example we showed how to connect an ML8511 to an Arduino Due, this time we are using a Nucleo board – in fact this was tested with a Nucleo-F334R8

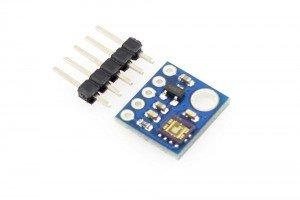

The ML8511 measures the amount of ultra violet rays contained in sunlight, and it is used for the equipment which displays the suntan by a ultra violet rays, the guidance for UV care of skin, etc

The sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to digital signal conversion then you can detect the level of UV!

Connection

Some modules have a VIN as well

nucleo and ml8511

Code

I found this on the mbed site, this was testing using their compiler

[codesyntax lang=”cpp”]

#include "mbed.h"

Serial pc(USBTX, USBRX);
AnalogIn sensorout(A0);
DigitalOut enablesensor(A1);

void ml8511_print_one_value()
{
 float uvraw, uv;
 #define MIN (0.300)
 #define MAX (0.900)
 #define UVONMAX 15
 uvraw = sensorout;
 uv = ( (UVONMAX/(MAX-MIN)) * (uvraw - MIN) );
 pc.printf("UV Intensity %2.2fmW/cm^2 (raw[%2.3f])\r\n", uv, uvraw);
}

int main()
{
 pc.printf("\n\r");
 pc.printf("ML8511 UV sensor test program.\n\r");
 enablesensor = 1;
 wait_ms(1);

 while(1) {
 ml8511_print_one_value();
 wait(0.4);
 }
}

[/codesyntax]

Output

You will need a serial program, I used TeraTerm and this was the output I saw

UV Intensity 16.22mW/cm^2 (raw[0.949])
UV Intensity 16.27mW/cm^2 (raw[0.951])
UV Intensity 16.31mW/cm^2 (raw[0.952])
UV Intensity 16.36mW/cm^2 (raw[0.954])
UV Intensity 16.41mW/cm^2 (raw[0.957])
UV Intensity 16.45mW/cm^2 (raw[0.958])
UV Intensity 16.48mW/cm^2 (raw[0.959])
UV Intensity 16.50mW/cm^2 (raw[0.960])
UV Intensity 16.52mW/cm^2 (raw[0.961])
UV Intensity 16.50mW/cm^2 (raw[0.960])
UV Intensity 16.50mW/cm^2 (raw[0.960])
UV Intensity 16.49mW/cm^2 (raw[0.960])
UV Intensity 16.46mW/cm^2 (raw[0.958])
UV Intensity 16.40mW/cm^2 (raw[0.956])
UV Intensity 16.37mW/cm^2 (raw[0.955])
UV Intensity 16.35mW/cm^2 (raw[0.954])
UV Intensity 16.29mW/cm^2 (raw[0.952])
UV Intensity 16.27mW/cm^2 (raw[0.951])
UV Intensity 16.20mW/cm^2 (raw[0.948])
UV Intensity 16.19mW/cm^2 (raw[0.947])
UV Intensity 16.16mW/cm^2 (raw[0.946])
UV Intensity 16.15mW/cm^2 (raw[0.946])
UV Intensity 16.14mW/cm^2 (raw[0.946])

Links

ML8511 UVB UV Rays Sensor Breakout Test Module Detector

int UVsensorIn = A0; //Output from the sensor void setup() { pinMode(UVsensorIn, INPUT); Serial.begin(9600); //open serial port, set the baud rate to 9600 bps } void loop() { int uvLevel = averageAnalogRead(UVsensorIn); float outputVoltage = 3.3 * uvLevel/1024; float uvIntensity = mapfloat(outputVoltage, 0.99, 2.9, 0.0, 15.0); Serial.print(" UV Intensity: "); Serial.print(uvIntensity); Serial.print(" mW/cm^2"); Serial.println(); delay(200); } //Takes an average of readings on a given pin //Returns the average int averageAnalogRead(int pinToRead) { byte numberOfReadings = 8; unsigned int runningValue = 0; for(int x = 0 ; x < numberOfReadings ; x++) runningValue += analogRead(pinToRead); runningValue /= numberOfReadings; return(runningValue); } float mapfloat(float x, float in_min, float in_max, float out_min, float out_max) { return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min; }

Arduino Due	ML8511 module
3v3	3V3
Gnd	GND
A0	OUT
